Introducing SMS' newest texture analyzer: the TA.XTPlus100

With double the force capacity and distance resolution of the Plus, the Plus100 expands the wide range of flexibility that Stable Micro System's instruments offer.

Like our flagship texture analyzer the TA.XTPlus, the TA.XTPlus100 can measure virtually any physical product characteristic or materials testing metric. What makes the TA.XTPlus100 so special?

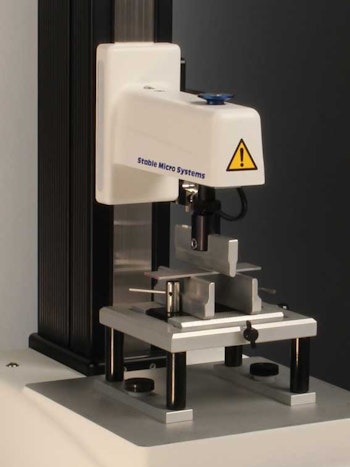

Testing hard products? While it is sized like the Plus, the Plus100 is tough like the TA.HDPlus

The Plus100 has double the force testing capacity of the Plus. Like the TA.HDPlus, the Plus100 has up to 100kg of force capacity making it perfect for testing very hard materials.

image of powders

Testing very small materials? The Plus100 can do that too.

The Plus100 offers extremely fine distance control and measurement - which is perfect for testing small hard materials like granules, beads, particles, and more. The Plus100's distance resolution is 0.0005mm compared to the Plus' 0.001mm.

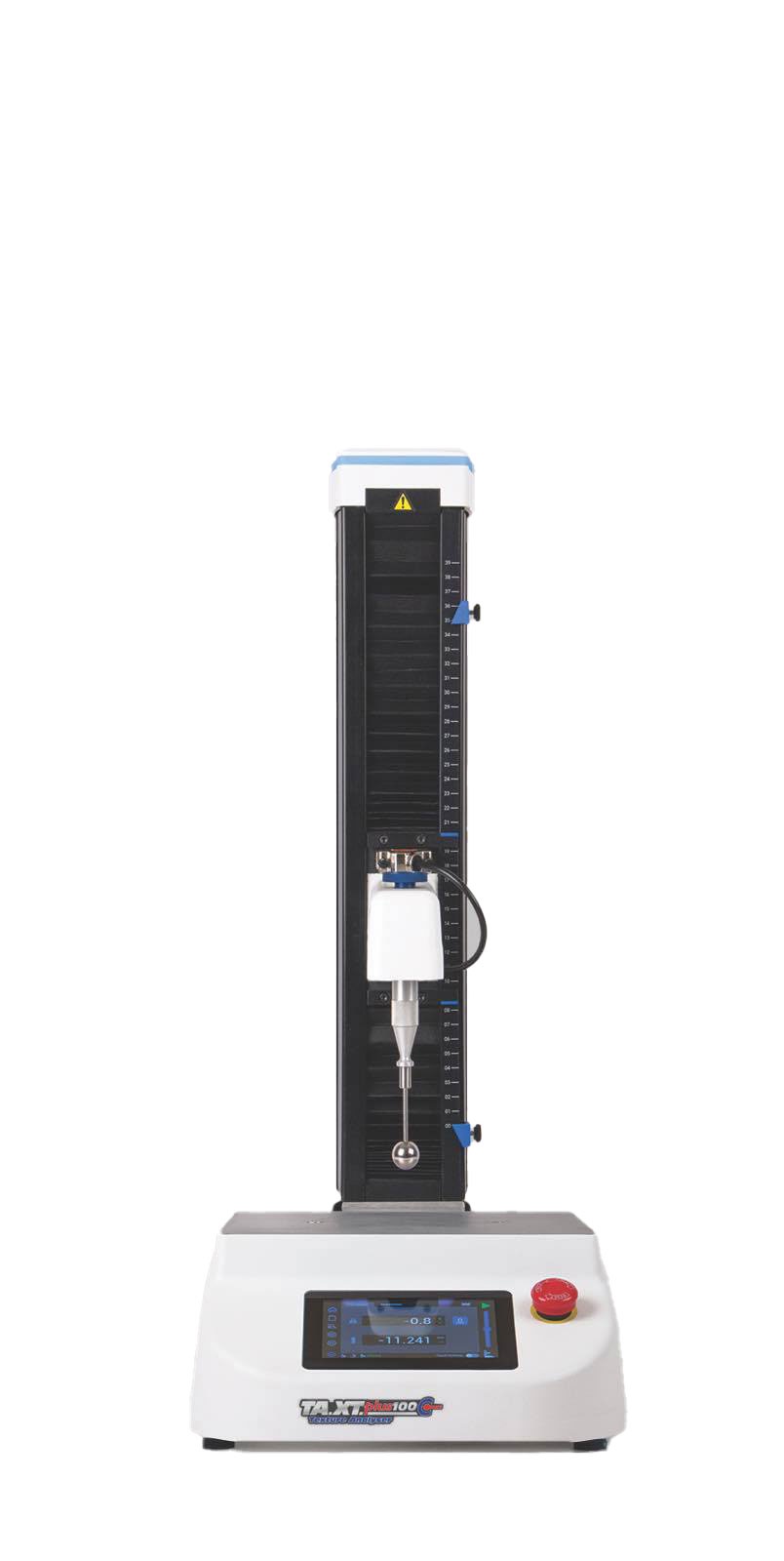

Built for testing tough materials but portable like the Plus

The Plus100's shape and size is similar to the Plus' making it perfect for testing in the lab and beyond. Unlike the HD, its smaller design makes it easy to deploy anywhere - whether in the lab or on the factory floor.

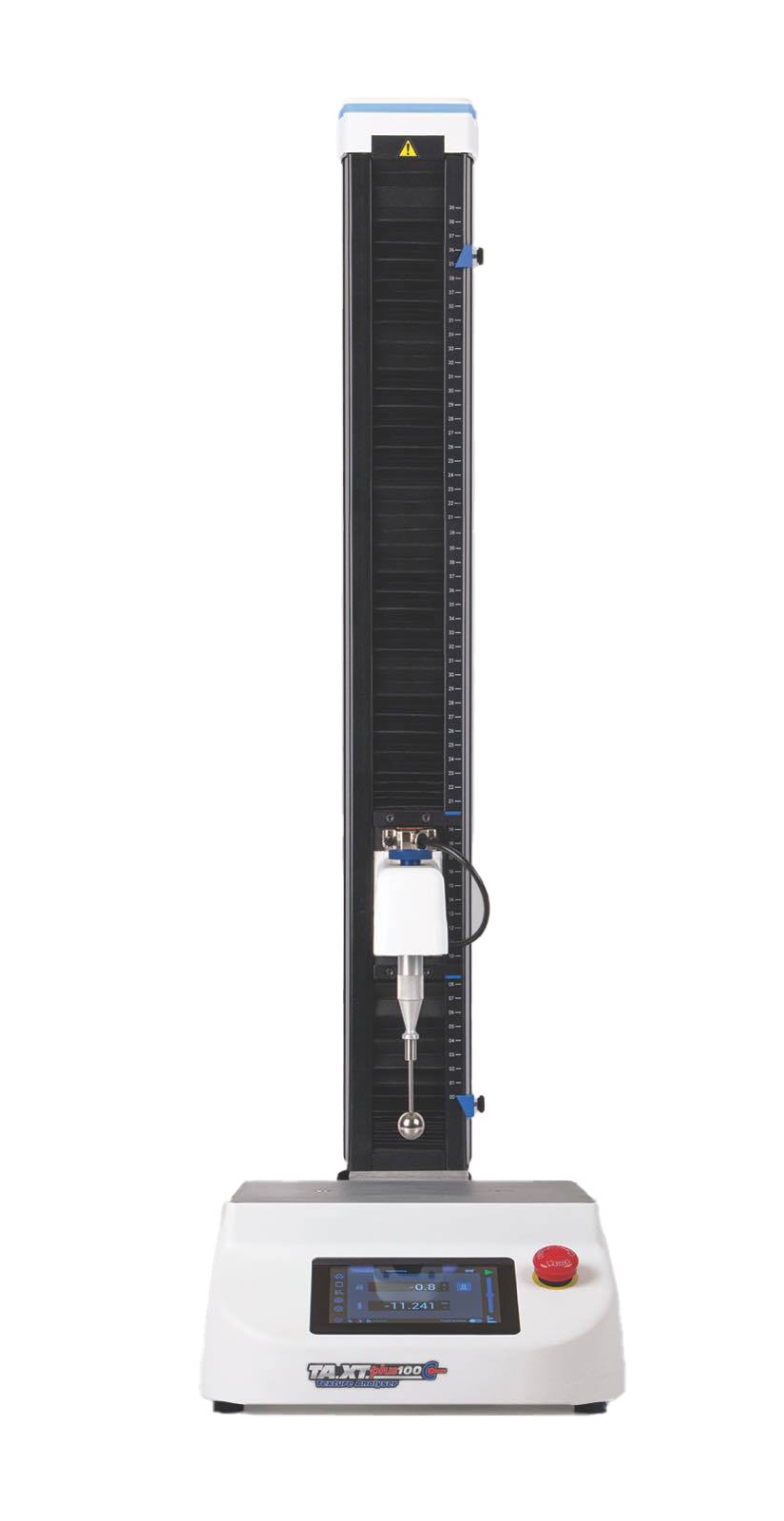

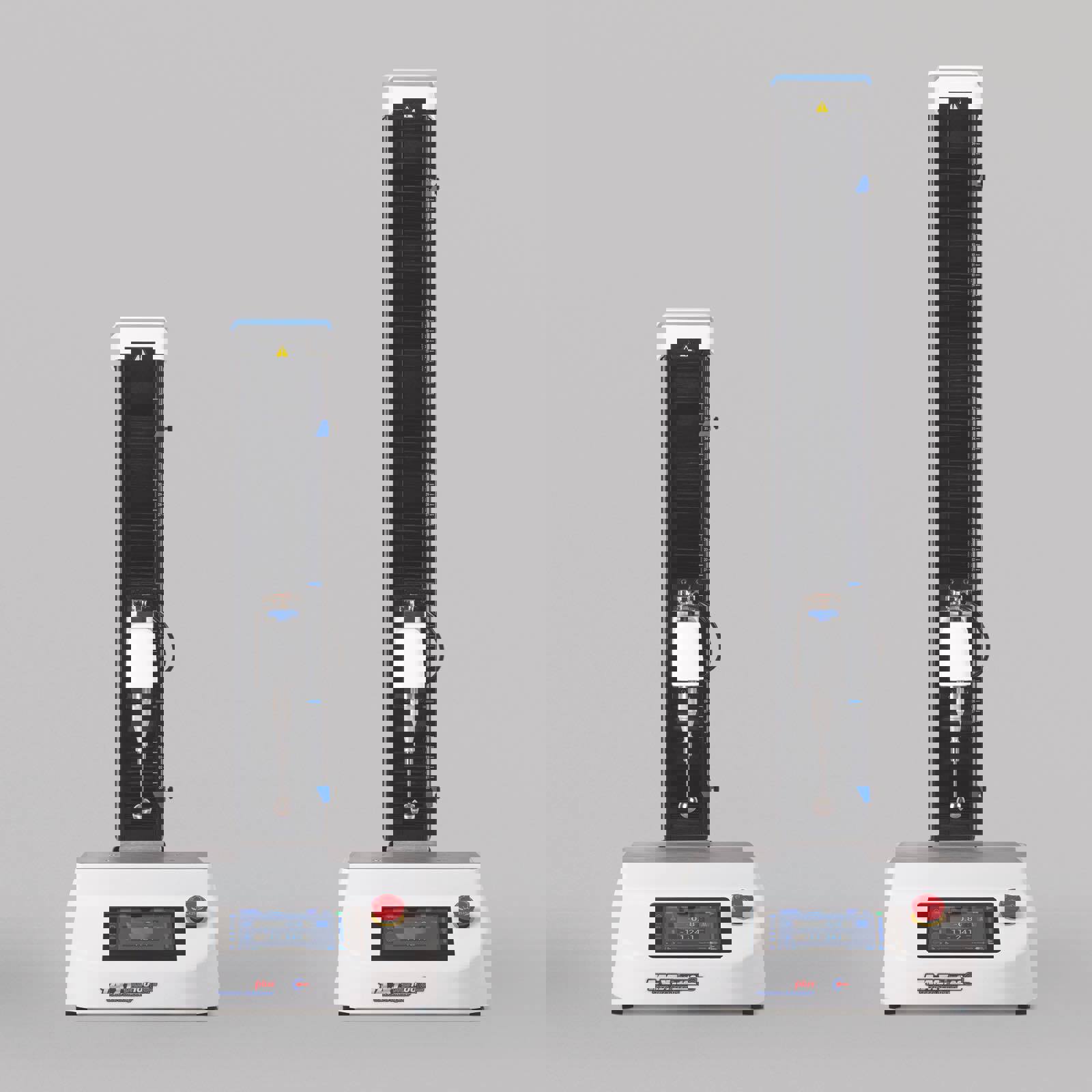

Like the Plus, the Plus100 is also available in an extended height version.

If your testing protocol needs extra height for thermal cabinets or extra stroke for highly extensible materials, then the Extended Height version of the Plus100 will satisfy your testing needs - with room to grow into the future.

Use all of the same probes, attachments, and fixtures as the Plus to conduct whatever tests necessary. Unlike the TA.HDPlus two column design, the 100's single column design works perfectly with all of Stable Micro Systems' and Texture Technologies' accessories, probes & fixtures.

The Plus' ability to plug-in peripheral instruments allows for many other measuring devices to be used in conjunction with the TA.XTPlus and their data simultaneously collected, such as sound, video, temperature, and humidity.

TA.XTPlus100

Why do top universities and companies across the globe chose our instruments?

While our customers know that while our instrument is the world's best, their decision to purchase our instruments is not just about the hardware. Ultimately it comes down to the support that we offer all of our customers. Our clients constantly cite our expertise and willingness to help them tackle testing challenges of all shapes and sizes as their number one reason why the Plus is and will always be their top choice when considering the purchase of a texture analyzer.

"We have been involved with the TA.XT Texture Analyzer for ten years (we have three of them). It is a great instrument and the software is fabulous. The other thing that is impressive about it is the way that they have continued to make improvements in the instrument, software and probes for the food industry."

Professor John R Mitchell, Head of Food Sciences, Department of Applied Biochemistry and Food Science, University of Nottingham, UK

Instrument Specs

Speed

0.01 – 20 mm/s

Maximum Aperture

350mm

Distance Resolution

0.0005 mm

Load Cell Capacity

500 grams (0.1g)

5 Kg (0.1g)

10 Kg (0.1g)

30 Kg (0.1g)

50 Kg (0.1g)

100 Kg (0.1g)

Size

670 mm tall (26.3")

540 mm deep (21.3")

280 mm wide (11.0")
