TA.HDPlus Connect

  • Heavy duty for high-force applications
  • Max Force: 750 kg
  • Speed: 0.01—20mm/s
  • Max. Aperture: 550 mm
  • Distance Resolution: 0.001 mm
  • Data Acquisition Rate: 2000 pps
  • Built to last for long-term reliability

Request Brochure

Upgrade Specs

Getting Started Guide

Built for high-force testing.

All the accuracy of our other Texture Analyzers, but larger and capable of high-force testing. Can perform precision testing down to a few grams without compromising accuracy, while still providing the rigidity needed for high-force measurements. The TA.HDPlus is the obvious choice for those testing a wide range of products or those with uncertain future testing needs.

“Since we purchased TA.XTPlus Texture Analyzer, we have been able to integrate our innovative skills and target new technologies with this system. An excellent service and technical support have always been there for us.”

Talal Ahmed,  Analytical Chemist R&I, Elkem Silicones

Unique Features

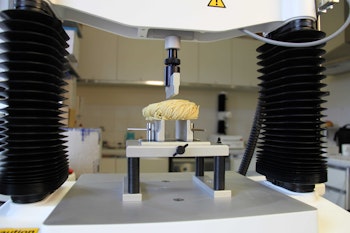

Twin-column Frame

Test large samples

A greater testing bed area and height range enable testing on much larger samples.

Loadcells

Perfect for low-force and heavy-duty testing

Tests forces up to 750kg with a family of intelligent factory-calibrated loadcells. Switching loadcells only takes a few minutes.

Tech Specs

Size

970 mm tall (38.2")
545 mm deep (21.5")
475 mm wide (18.7")
39.2kg weight

Load Cell Capacity

500 grams (0.1g)
5 Kg (0.1g)
30 Kg (0.1g)
50 Kg (0.1g)
100 Kg (0.1g)
250 Kg (0.1g)
500 Kg (0.1g)
750 Kg (0.1g)

Distance Resolution

0.001 mm

Max Aperture

550 mm

Speed

0.01 – 20 mm/s

Software Capability

Exponent Connect

Exponent Connect Lite

Test Types

Cycle, Hold, Return to Start, Repeat, Adhesive Test, TPA. Apply Distance and Apply Force options.

Accessories

Acoustic Envelope Detector, Peltier Plate and Cabinet, Thermal Cabinet, Video Capture System, Dynamic Integrated Balance

Unsure if the TA.HDPlus is right for you?

Compare Instruments

Featured Customer Story

The TA.XTPlus shows its sensitive side.

An adhesive company developed a special product with very low tack force. The product was strong enough to stick to whatever it was applied to but required almost zero force to pull off. The company needed an instrument that was sensitive enough to measure such an extremely low tack.

Read More
“The TA.XTPlus Texture Analyzer is one of our lab workhorse. I absolutely enjoy working with the team (especially Jeanne Held) at Texture Technologies Corp and appreciate them going above and beyond in the care and responsiveness they provide whenever I need guidance in method development and equipment troubleshooting.”

Marjorie Welchoff, Senior Associate Scientist, Global Food Texture Science Technology Platform, Ingredion Inc

Compatible Software

The TA.HD Plus Connect works with all versions of our proprietary Exponent Software.
